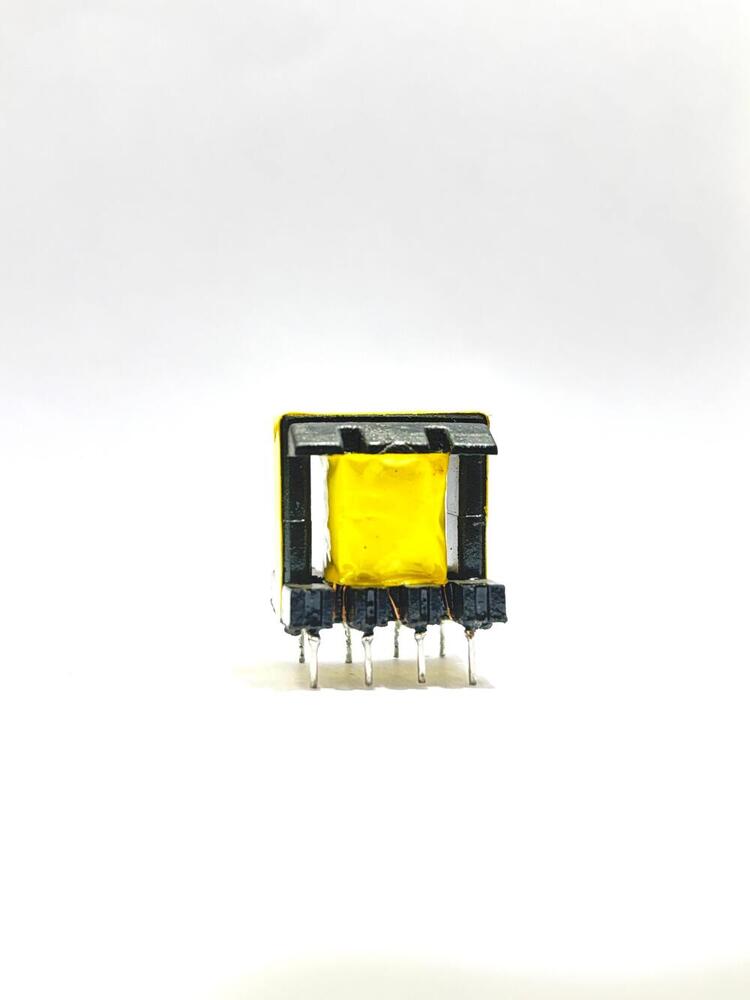

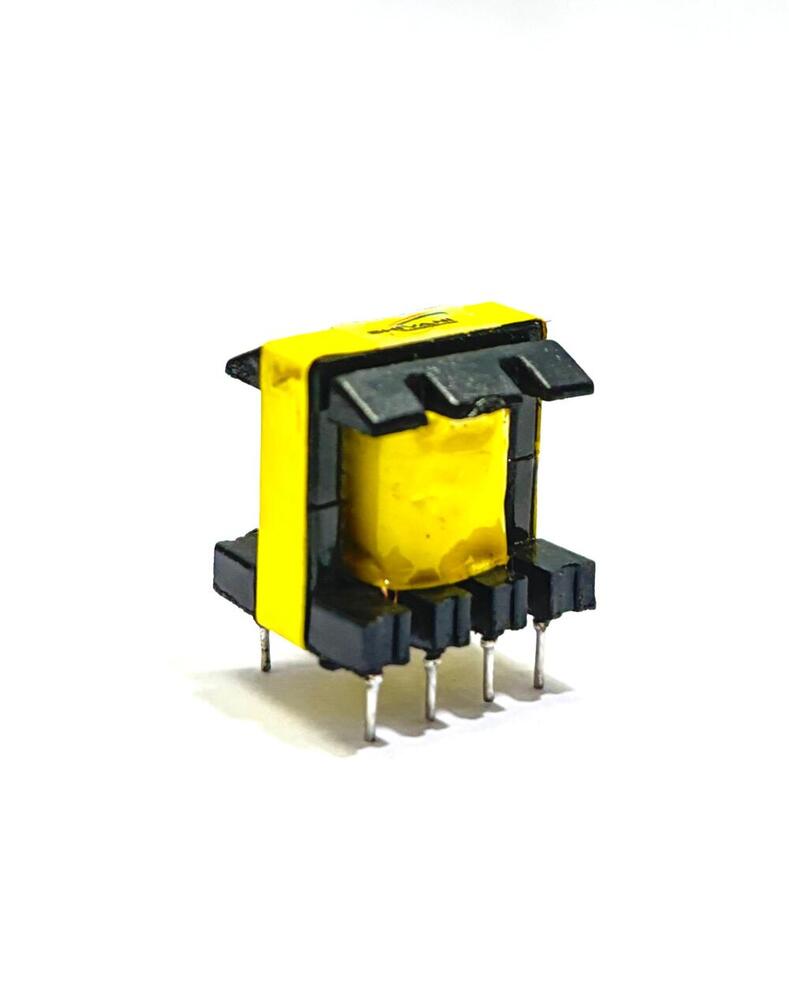

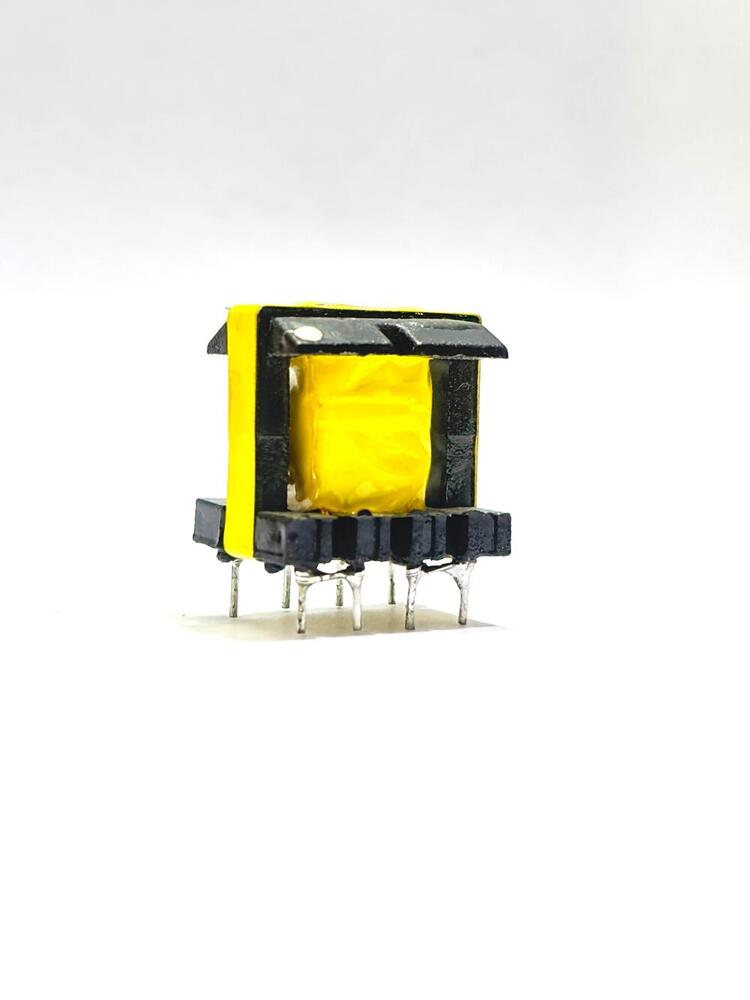

EE20 Driver Transformer

Product Description

A Driver Transformer is a compact magnetic component designed to transfer signals or power between circuits, commonly used to drive power transistors, gates, or other switching devices in high-frequency applications. It provides electrical isolation, signal amplification, and impedance matching, making it ideal for use in gate drive circuits and pulse-triggering systems.

Key Features:

• High-Frequency Operation: Designed to handle fast switching signals

• Electrical Isolation: Safely separates control and power stages

• Low Leakage Inductance: Ensures sharp signal transitions

• Compact Design: Easily integrated into PCBs

• Core Material: Typically ferrite for efficient high-frequency performance

• Custom Turns Ratio: Supports specific voltage and current requirements

Applications:

• Gate driver circuits (MOSFETs, IGBTs)

• Switching power supplies (SMPS)

• DC-DC converters

• Pulse transformers

• Inverter and motor drive circuits

• Isolated signal transmission systems
